New Car Express | Hongda Times's integrated charging and battery replacement underground mining truck is successfully launched! Opening a new chapter in mining transportation

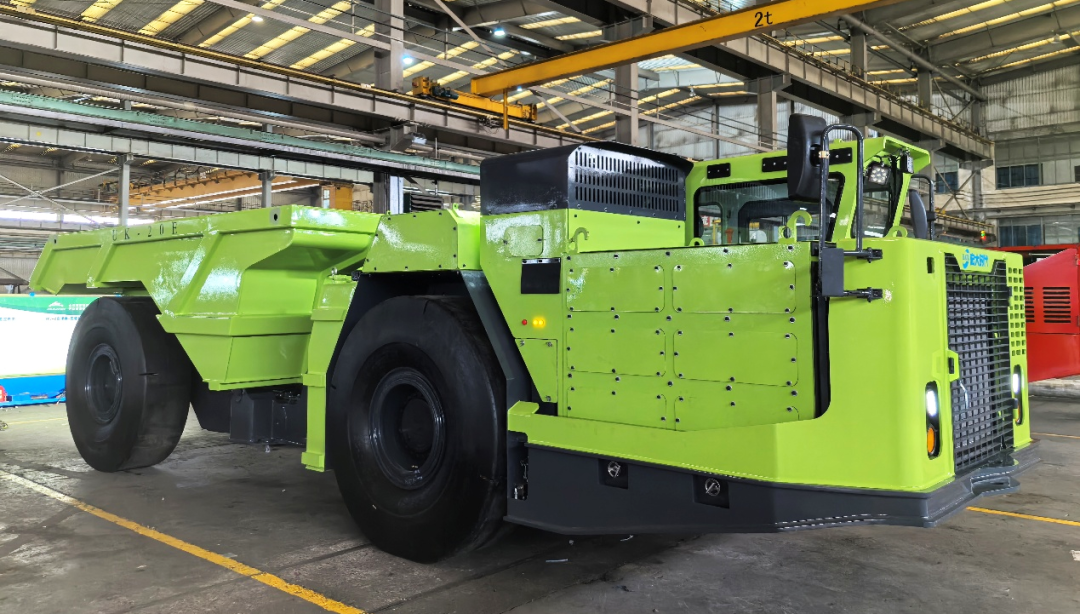

UK-20EThe whole vehicle adopts an articulated frame structure, which divides the frame assembly into a front frame and a rear frame.
The front frame is equipped with a simple and fast battery replacement module and a swing frame, which not only demonstrates excellent passing performance and unique recognition, but also effectively plays an anti-collision function when the vehicle passes through lanes in harsh environments, providing reliable protection for the safe passage of the vehicle.
In terms of improving the appearance recognition of underground vehicles, the unique structural design makes the vehicle easy to identify in the complex environment of the mine, further enhancing the practicality and safety of the vehicle.
Product highlights
01 Energy Revolution: Dual Mode of Charging and Battery Swapping
Original "charging + battery replacement" dual energy solution：It can provide the optimal energy replenishment method and power capacity according to the user's actual scenario to adapt to high-intensity operation requirements.The battery replacement time does not exceed 5 minutesThe battery replacement unit has a built-in automatic fire extinguishing device to further ensure the safety of equipment use.
| Vehicle electrification
Adopt high-power, high-torque traction motor direct drive technology, effectively solving the core pain points of traditional mechanical transmission systems such as high efficiency loss, high maintenance cost, delayed response and low energy utilization.
| Efficiency Leap:Transmission efficiency is increased from 85% to over 95%.
| Reduced maintenance costs:Eliminating components such as gearboxes reduces maintenance costs and improves equipment availability.
| Architecture optimization:By eliminating complex transmission devices, the powertrain reduces space occupancy by more than 30%.
The vehicle's electric brake is used as service brake, and the mechanical brake is used as auxiliary brake.
Electric braking can also achieve energy recovery, significantly reducingMechanical brakeAt the same time, it can significantly reduce the rate of temperature rise of hydraulic oil, reduce the demand for oil temperature cooling in the hydraulic system, and further save energy.
Both electric brakes and mechanical brakes can meet common braking needs, and the dual brake system has dual insurance, which is safer.

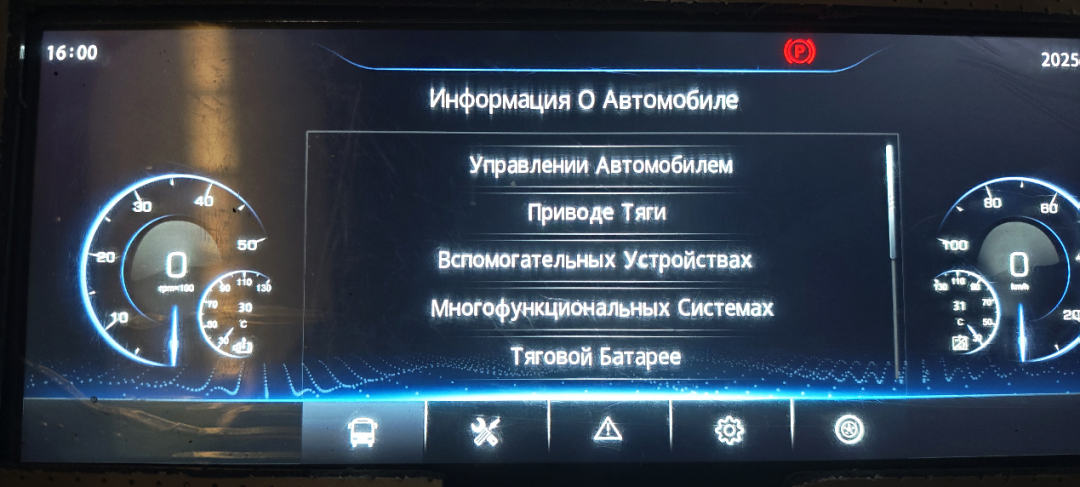

04 Humanized design: barrier-free human-computer interaction
05 The car of the future: driverless ready
● Equipped with 360° surround view camera, the driver can monitor the complex environment underground without blind spots.
| Vehicle heavy load operation
UK-20EThe launch of the product is just the beginning. Hongda Times will continue to promote the green upgrade of mining equipment and provide the global mining industry with intelligent, low-carbon, unmanned, full-scenario integrated solutions.Intelligent management systemThe deep integration with circular economy technology helps mining companies achieve the dual goals of safe and efficient production and ecological environmental protection.
